Fully Automatic Hematology Analyzer-Touchscreen and Double Channel -HA02
Your Best In-Vitro Diagnostics Device Supplier
High Qulity Fully Automatic Hematology Analyzer for sale factory supply
WELCOME
Product Features
The HA02 is a Fully-automatic blood cell analyzer ideal for routine testing in small to medium laboratories. It is used for detecting the parameters of RBC, WBC and HGB, and for leukocyte count, contributing to the monitoring of clinical condition of patients with hematological abnormalities.
| Fully digitized process of signals from blood cell, mature design of fluid path to ensure the reliability of measurement. |
| Advanced floating threshold combined with perfect abnormal blood sample expert recognition system |
| Independent hemoglobin detecting system, unique volume metering pipe direct quantify technology; the interference source can be eliminated and accuracy can be increased. |
| Particle wizard technology: cells’ straight-line motion produce pulse to ensure the accuracy of WBC,RBC,PLT counting |
| Bi-directional stereoscopic rotational flow technology: avoiding fluid interfering PLT counting |
| 3-part white blood cell differential |
| Double Test Channel -60Test/Hrs |
| Brand-new highly accurate trace blood treating technology |
| Impedance technology, Cyanide methemoglobin method and non-cyanide SFT method |
| 8.4 inches TFT touchscreen |
Product Specificatio
3 Part WBC Fully Auto Hematology Analyzer specifications
| Items Tested | RBC, MCV, HCT , RDW-SD, RDW-CV; HGB, MCH, MCHC ; PLT, MPV , PDW , PCT ; WBC, LYM#, LYM% ,MID# ,MID% ,GRA# ,GRA% , P-LCR ;(WBC, RBC, PLT Histogram included) |
| WorkingMethod | blood cell counting: Impedance Method; |
| HGB Test | HGB-546nm Colorimetric Method |
| Clinical function | 3-part differential, 23 parameters. |
| Test Speed | 60 test per hour |
| linearity range | RBC 1.00~9.90×1012/L HGB 25~400g/L WBC 0.5~99.0×109/L PLT 50~999×109/L |
| Precision | RBC ≤ 2% HGB ≤ 2% WBC ≤ 2% PLT ≤ 4% MCV ≤ 1%. |
| Sample volume | venous blood 9.7 μL peripheral blood 20 μL Dilution Rate: WBC/HGB 1/400; RBC/PLT 1/40000 |
| Operation Interface | 8.4 inches TFT touchscreen, English operation interface. |
| Calibration | Automatic calibration and manual calibration. |
| Quality control software | Multi-level QC summary, X, SD and CV auto-summary, auto-calculate average value of MCV, MCH, MCHC, and store QC results. |
Data storage >30000 results of sample, including 3 histograms.Reporting systembuilt-in thermal high-speed printer, EPSON LQ-300K+2 printer
connectable.
Data interface Two USB ports, one RS-232 interface, one printer port.Information editPatient information can be imported,including name of patient,
department, inspector, etc.Dimension330mm×420mm×400mmWeight15 kgs

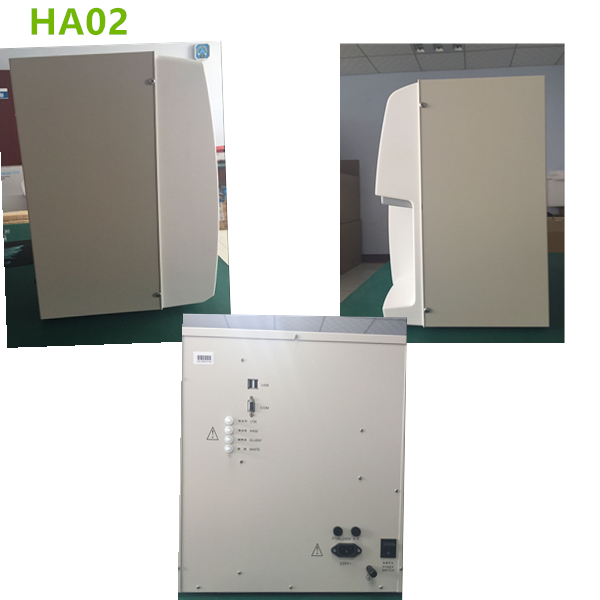

Product Picture
3 Part WBC Fully Auto Hematology Analyzer pictures
Customer Reviews
Customer from SA: This Hematology Analyzer works great and touchscreen is very quick response.
Customer from PK: Fully Auto Hematology Analyzer Received ,works ok .
Customer from kenya: This Double Test channel hematology Analyzer very economic and good quality
Customer from India: HA02 hematology analyzer is ok ,we test for times the reagent sysmes is very suitable for this machine!
Warranty Period :12-24 months for Fully Automatic Hematology Analyzer-Touchscreen and Double Channel
